Connect and Disconnect

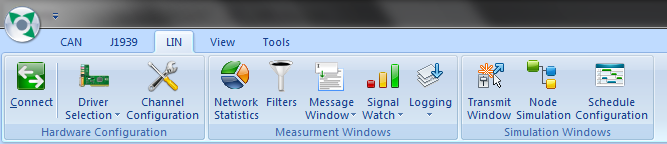

User can connect/disconnect the tool from the LIN-bus by pressing/releasing a toggle tool bar button shown in the figure below.


The tool can also be connected by selecting LIN Connect menu option (available only in disconnected state). The same can be disconnected by selecting LIN Disconnect menu option (available only in Connected state) or by pressing Esc key. When the tool is in connected state, the menu option will become Disconnect and when the tool is in disconnected state, the menu option will be displayed is Connect.

Transmission and reception of messages can be done only when the tool is in the connected state.

Authoritative source: BUSMASTER DITA help source LIN_Connect.dita, compiled into BUSMASTER.CHM with the application.
