Event Triggered Frame

Creating Event Triggered Frames:

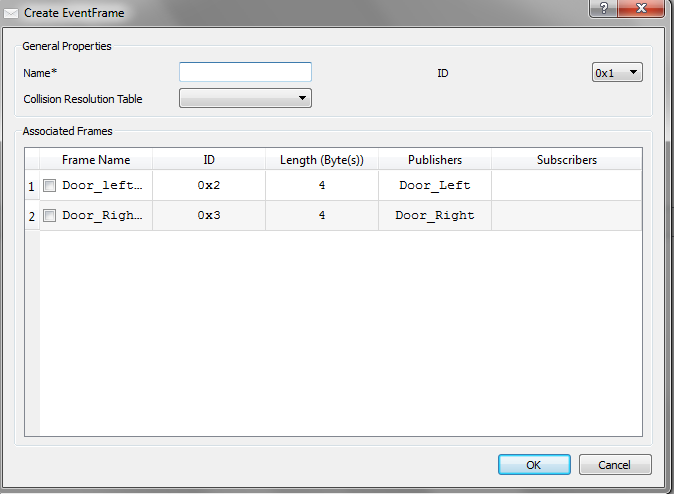

To create Event Triggered frame right click on the Event Triggered Frame element in the element view and click on popup menu ‘New’.Create Event Triggered Frame dialog is as shown below.


General Properties: Name: Name of the frame which should follow C identifier rules and should be unique. ID**:** Identifier of the frame [0-59] Collision Resolution Table: Using drop down select the Schedule table to be referred in case of Collision. Associating Frames: Check the Unconditional frames to be mapped to the Event Triggered frame from the Associated Frames list.

The following validations are performed: Frame name will be checked for its uniqueness Frame Id will be checked for its uniqueness Checked if selected Associated frames belong to the Collision resolving table

To discard the changes click on ‘Cancel’ button.

Editing Event Triggered Frames:

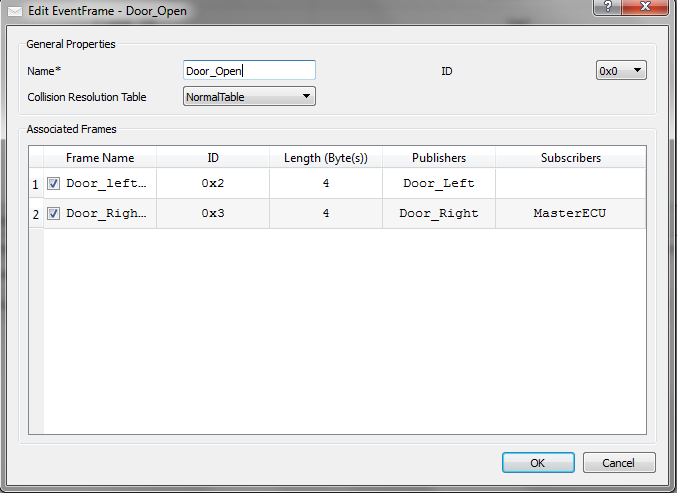

To edit existing Event Triggered Frame right click on the Event Triggered frame item in the Element view and click on ‘Edit’. ‘Edit Event Triggered Frame’ dialog is displayed as shown below.

LIN_EventTrigEdit.pngDeleting Event Triggered Frame:

To delete Event Triggered Frame, right click on the Event Triggered frame item in the Element view and click on the pop up menu ‘Delete’. A confirmation message will be displayed before deleting the frame.

To save the changes click on ‘OK’ button. Errors are displayed if validation fails.

The following validations are performed: Frame name will be checked for its uniqueness Frame Id will be checked for its uniqueness Checked if selected Associated frames belong to the Collision resolving table

To discard the changes click on ‘Cancel’ button.
