Schedule Table

Creating Schedule Table:

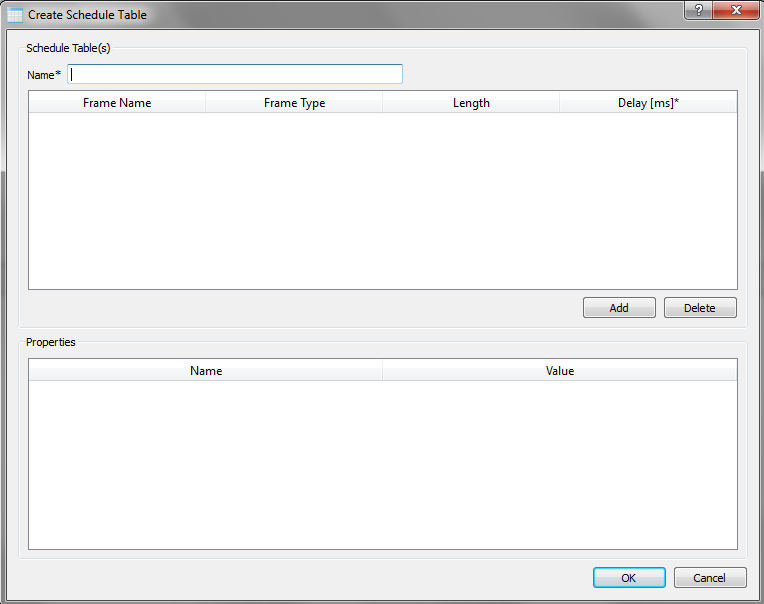

To create Schedule Table right click on the Schedule Table element in the element view and click on popup menu ‘New’.Create Schedule Table dialog is as shown below.

General Properties: Name: Name of the Schedule Table should follow C identifier rules and should be unique. Adding Schedule Table Item: To Add Schedule Table Item, click on ‘Add’ button which adds a new row in Frame list. Frame Name drop down will be populated with the list of Unconditional frames, Event Triggered frames, Sporadic frame and Diagnostic Frames. Select the Frame name from the Frame Name drop down. Specify the delay in delay field. Deleting Schedule Table Item: Select the Schedule Table Item in the list and click on ‘Delete’ button Property view: On selecting Schedule Table Item in the list, properties will be displayed in the property view based on the type of the frame selected User defined parameters will be editable in the Property view for user input

Editing Schedule Table:

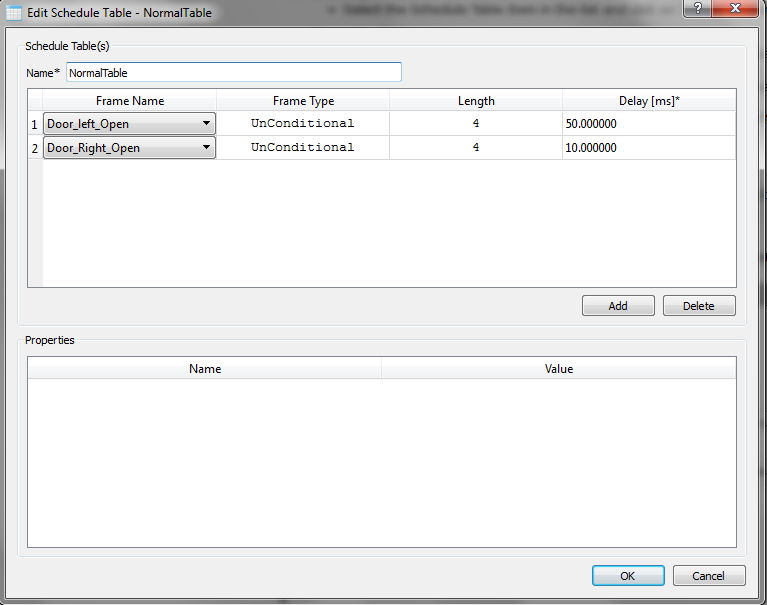

To edit existing Schedule Table right click on the Schedule Table in the Element view and click on ‘Edit’. ‘Edit Schedule Table’ dialog is displayed as shown below.

Deleting Schedule Table:

To delete Schedule Table, right click on the Schedule Table in the Element view and click on the popup menu ‘Delete’. A confirmation message will be displayed before deleting the frame.

To save the changes click on ‘OK’ button. Errors are displayed if validation fails.

The following validations are performed: Schedule Table name will be checked for its uniqueness

To discard the changes click on ‘Cancel’ button.

---
